Does anyone has a fixture profile of the Showven Sparklar Mini?
I tried a few things in the fixture-editors without success.
Hi, can you please share the fixture profile you’ve tried to make and explain where you got stuck?
Showven Sparklar Profile 2.sbf (653 Bytes)
I just tried a thing, but i’m not shure if it will work in balance with the manual setting. It’s my first time.
Thanks for sharing the profile! This is a good start, but a few adjustments are needed to allow you to control your fixture as expected.

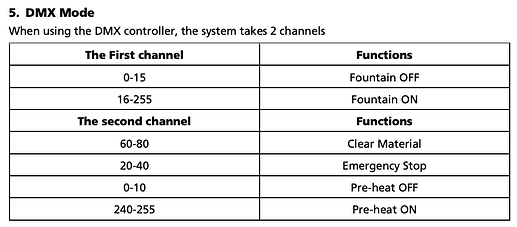

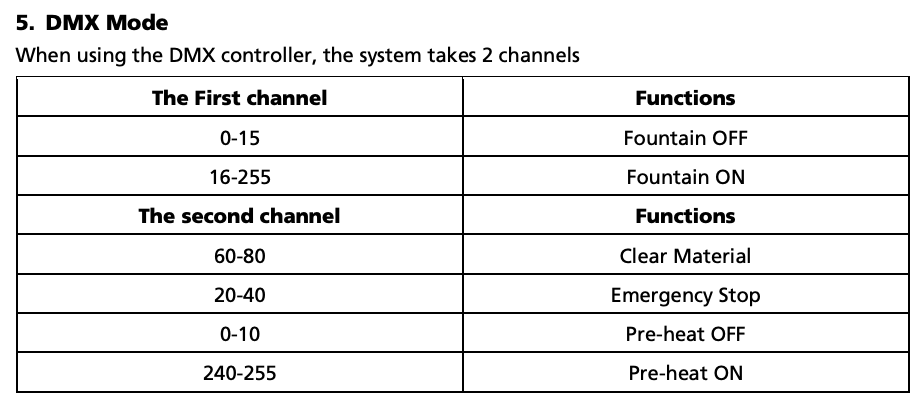

For reference, here is the DMX chart of the fixture:

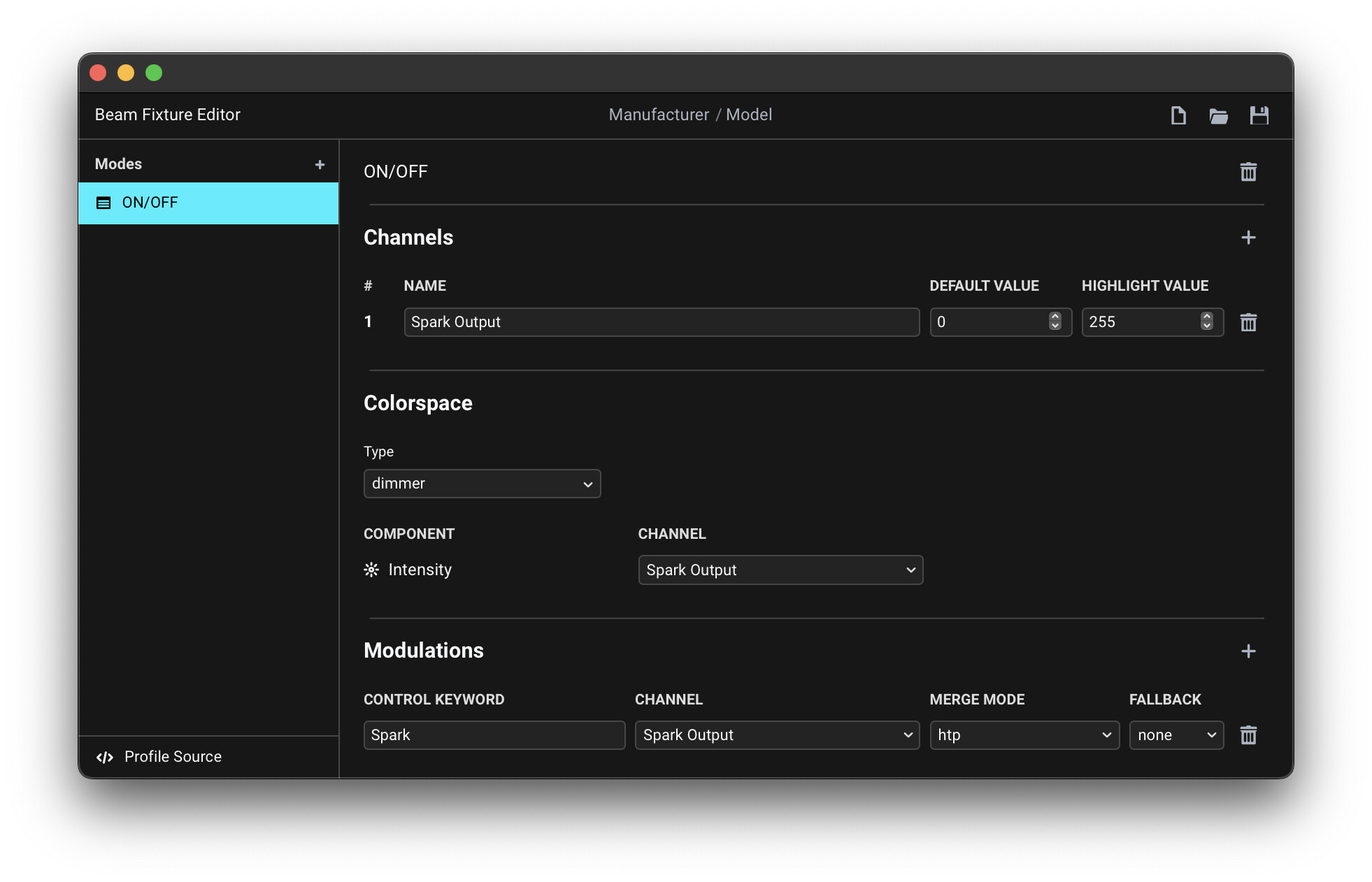

The fixture has 2-channels, but you only added a single one:
Furthermore, you mapped the Spark Output channel as both a dimmer (something that can be controlled using the Intensity / dim parameter on Beam devices) and a generic modulation. You should only map a channel once, either as part of the Colorspace or as a Modulation. Also, make sure you always fill in the Manufacturer and Model fields.

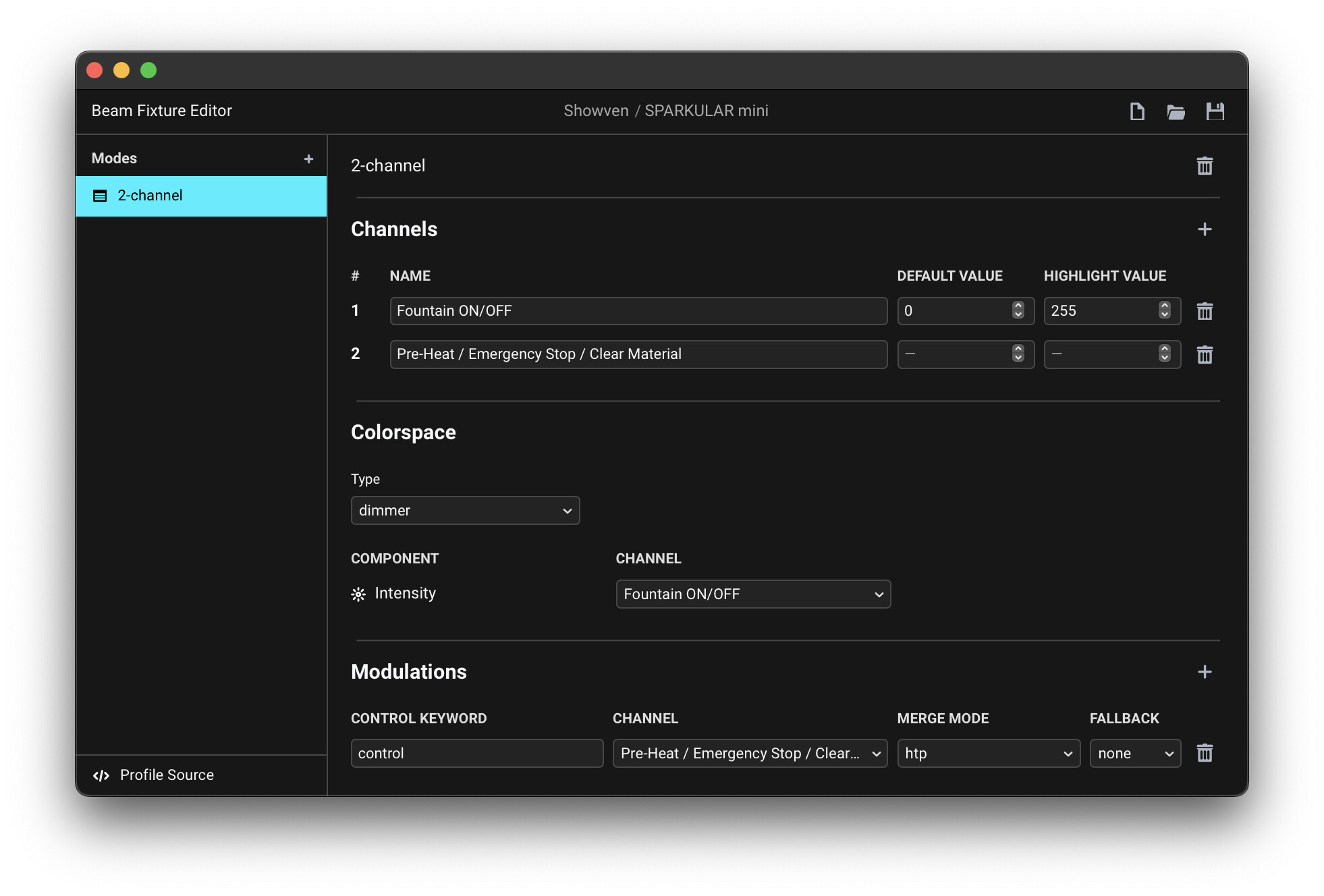

Here is the adjusted profile that has both channels, and makes first channel (Fountain ON/OFF) controllable using Intensity, and the second channel (Pre-Heat / Emergency Stop / Clear Material) using control modulation keyword:
Showven SPARKULAR mini.sbf (809 Bytes)
1 Like
Luka,
You are my hero! Thank you so much! This gives me a lot of insights. I’ll try it myself for my next fixture (lightmaxx cannon shot fx two)
1 Like
