Equinox Fusion Orbit 37 Channels

[laimacavalera]

Hello, I have the fusion orbit equinox fixture and have been using it with Beam 1.6 and now with Beam 2. I would like to use the 37 channels which includes parameters for the ring which I can’t seem to make it work now. I can only work beam and ring simultaneously by using “Intensity”.

---

• Manufacturer and model: equinox
• Fixture profile file: Equinox Fusion Orbit MKII
• Link to the DMX channel list: Equinox Systems Fusion Orbit MKII User Manual (Page 6 of 12) | ManualsLib
• Edition (Beam for Live / Beam for Max) and version: Beam for Live (Beam 2)
• **DMX channel mode(s) you’ve tested:**strong text - 16 and 37 channels

[Luka]

Hi @laimacavalera!

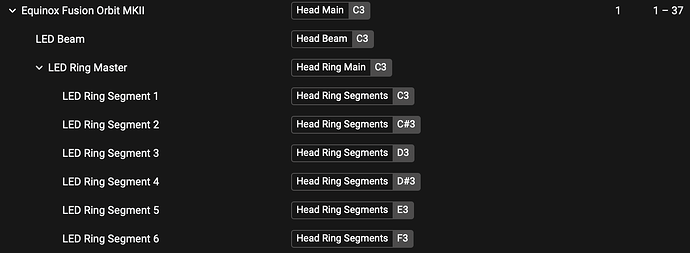

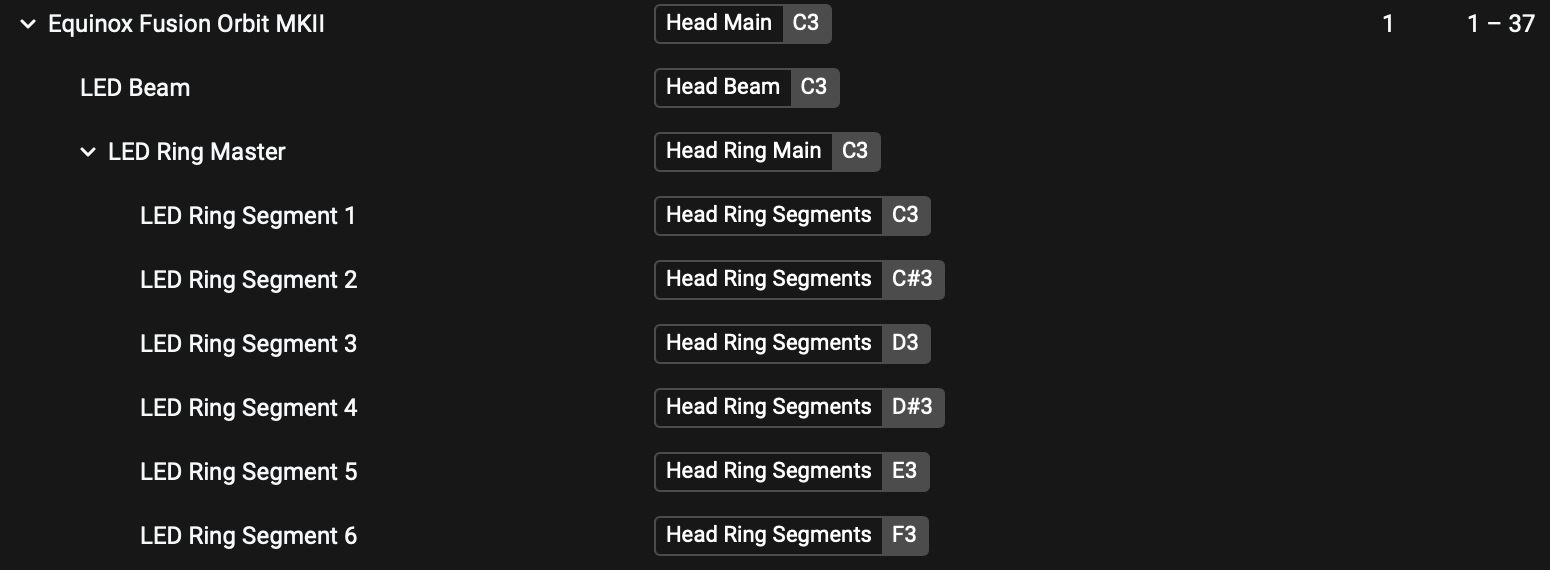

To gain full control over each individual part of this fixture in 37-channel mode, assign the tags to it like so:

In Live, use a separate device for each tag / part of the fixture:

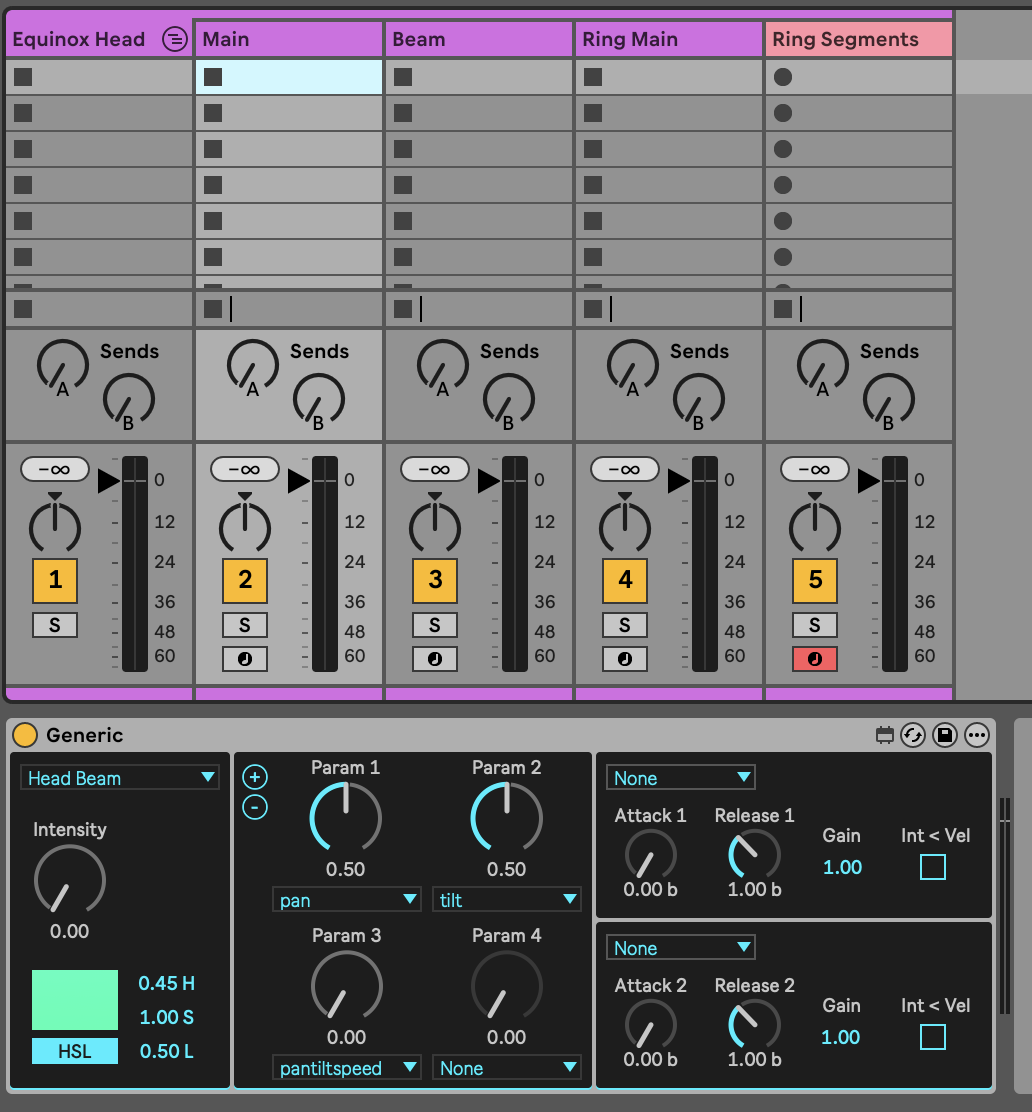

• main (pan, tilt, pantiltspeed):

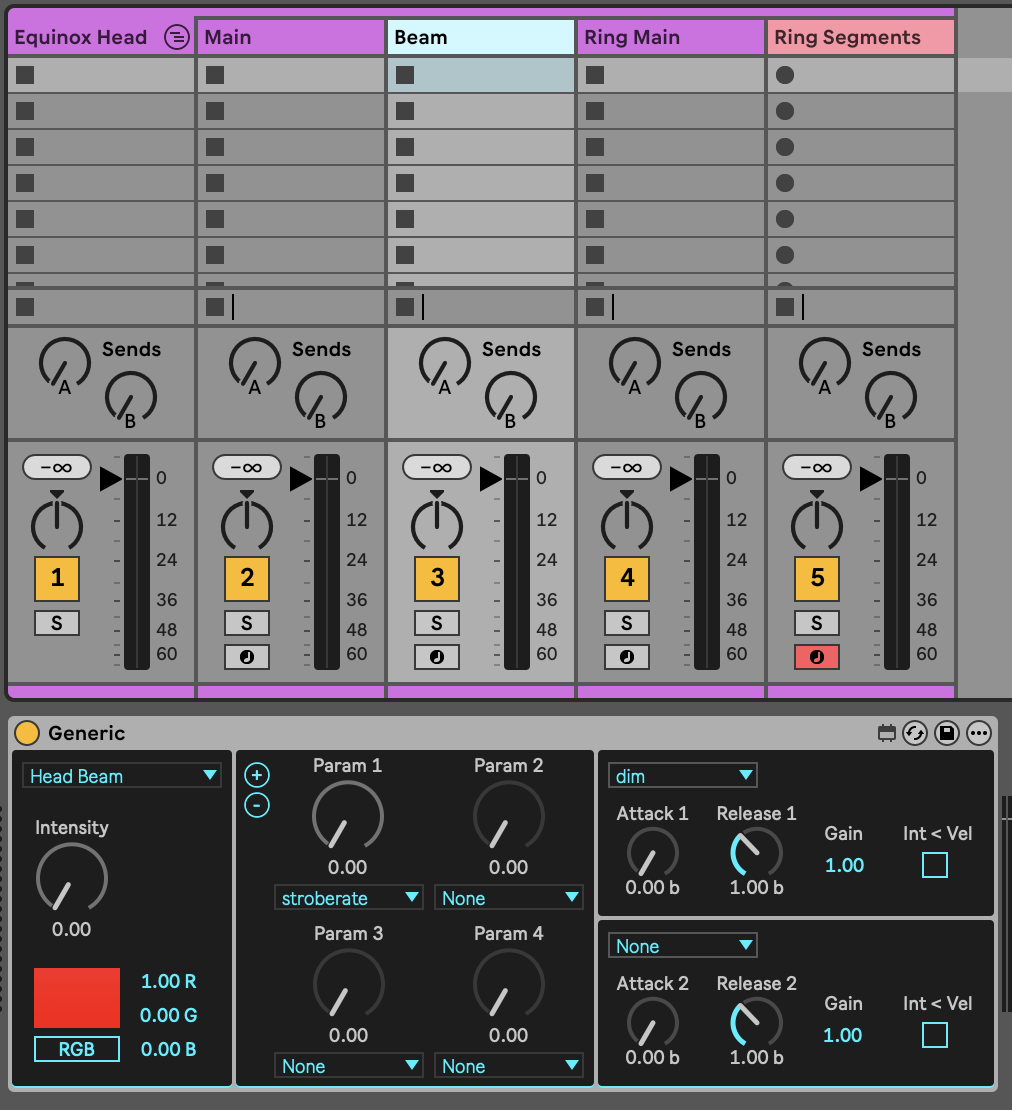

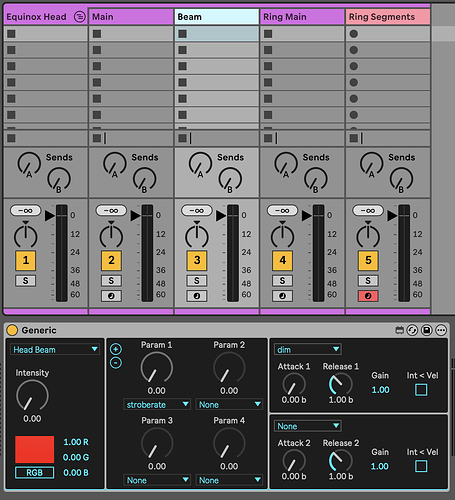

• Beam (intensity, color, stroberate):

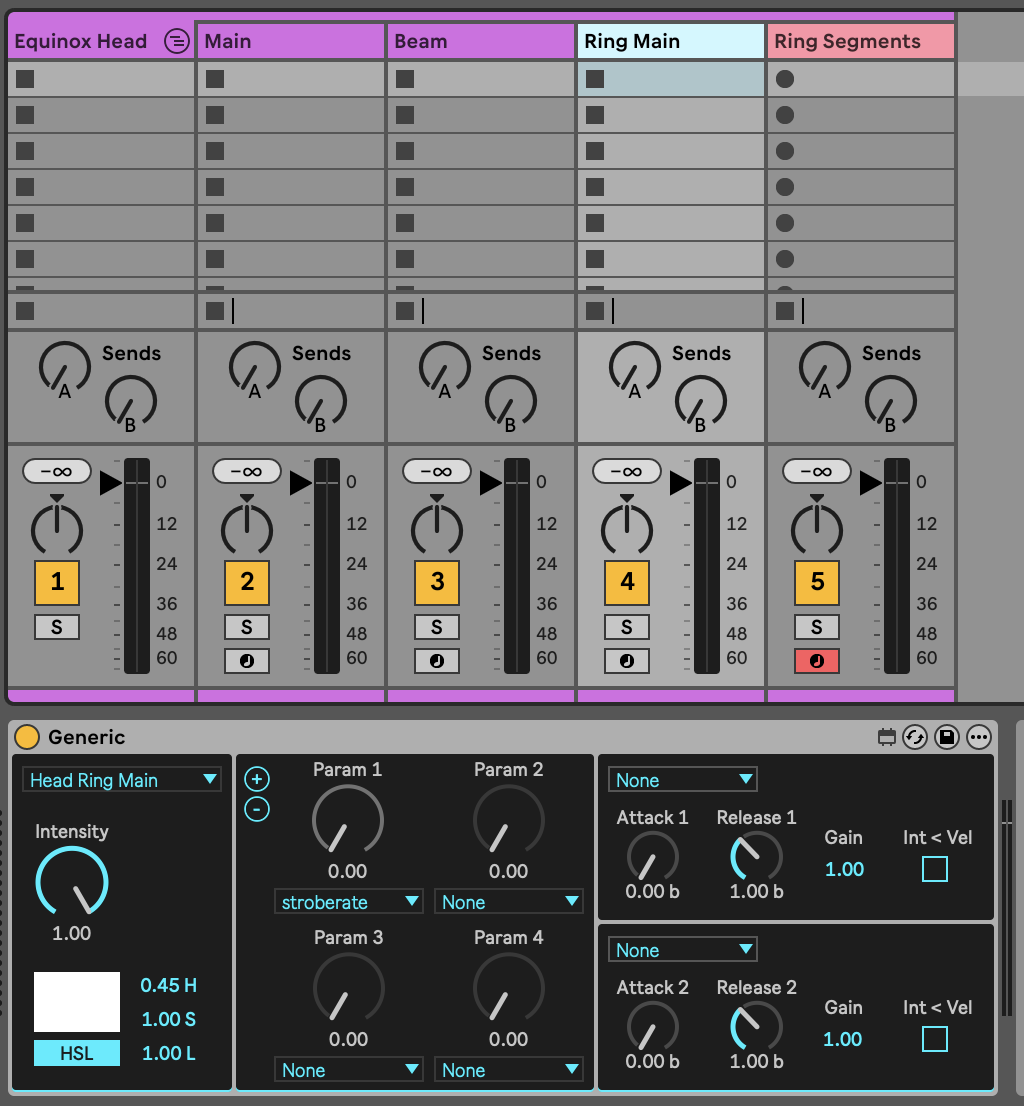

• Ring main (master intensity of all the segments - can be set to always 100%, stroberate):

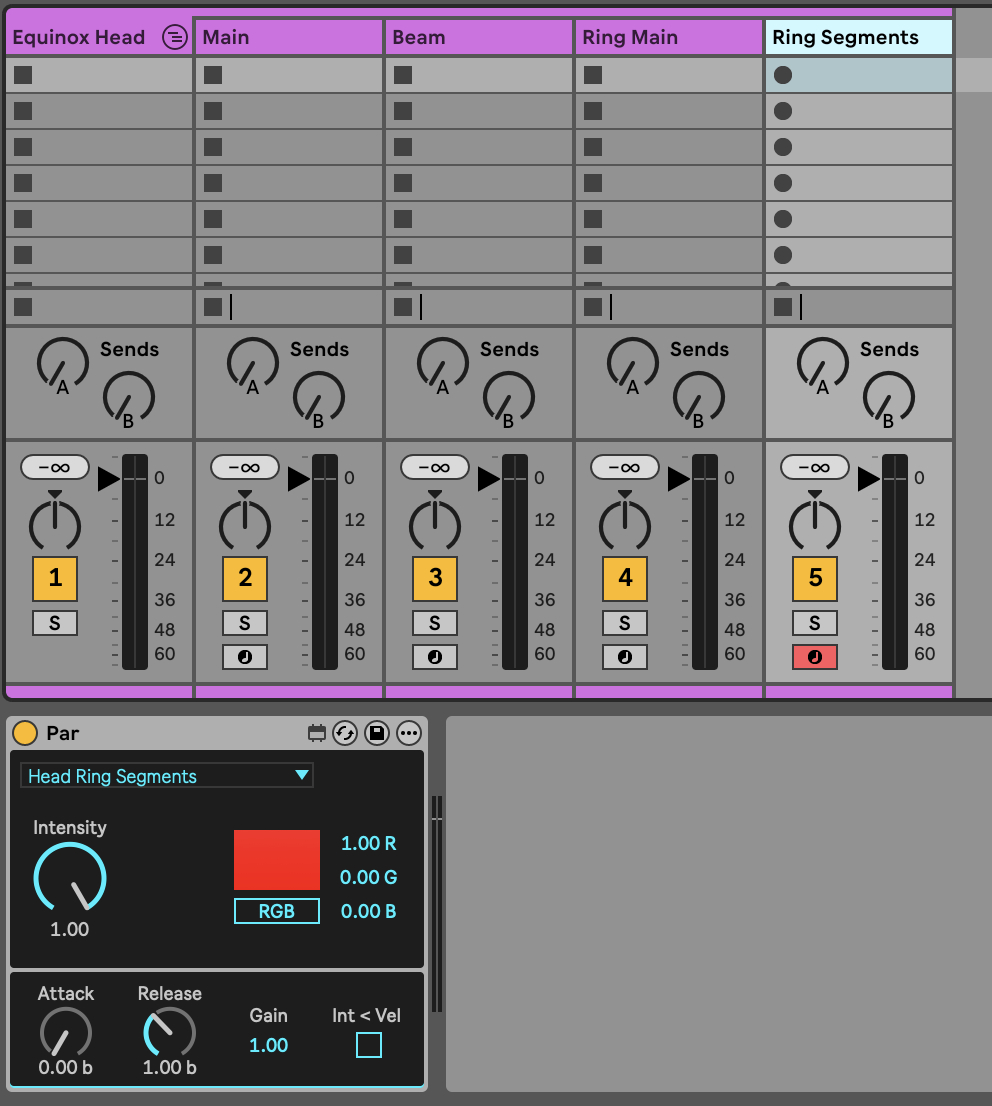

• Ring segments (intensity and color, each segment can be addressed individually)



Please let us know if this works for you.
