Manufacturer and model: Betopper LC500 4×100W Amber/CW High CRI COB Blinder Light
Fixture profile file:
Betopper LC500.sbf (1.4 KB)
Link to the DMX channel list: https://cdn.shopify.com/s/files/1/0084/5230/9047/files/LC500__USER_MANUAL.pdf?v=1742784752
Edition (Beam for Live / Beam for Max) and version: beam for live 2
DMX channel mode(s) you’ve tested: 12 ch a001
Hello I tired this profile I made and only 1 light comes on using the generic plug in any suggestions
Hi Eric, welcome to the forum!
Thanks for sharing your profile! I think to properly be able to control this fixture it makes sense to add a cell for each emitter.
I made a new profile that contains both modes:
Betopper LC500.sbf (10.7 KB)
Please take a moment to load the profile in the Fixture Editor so you can see which modulations are controlled by which layer (the main fixture and cells).
I’ve also made a simple example of a Live Set and Beam Patch that uses the 12-channel A001 mode:
Betopper LC500 Example Project.zip (42.5 KB)
Notice how the different modulations for the different layers are controlled:
Intensity set to 1.program, programspeed, stroberate modulations.Nice , Let me check it out .Thanks so much
I was able to use the cells and the strobe but program and program speed didn’t work or I did something wrong .I m able to use what you set up so let me see what I can create with it thanks so much

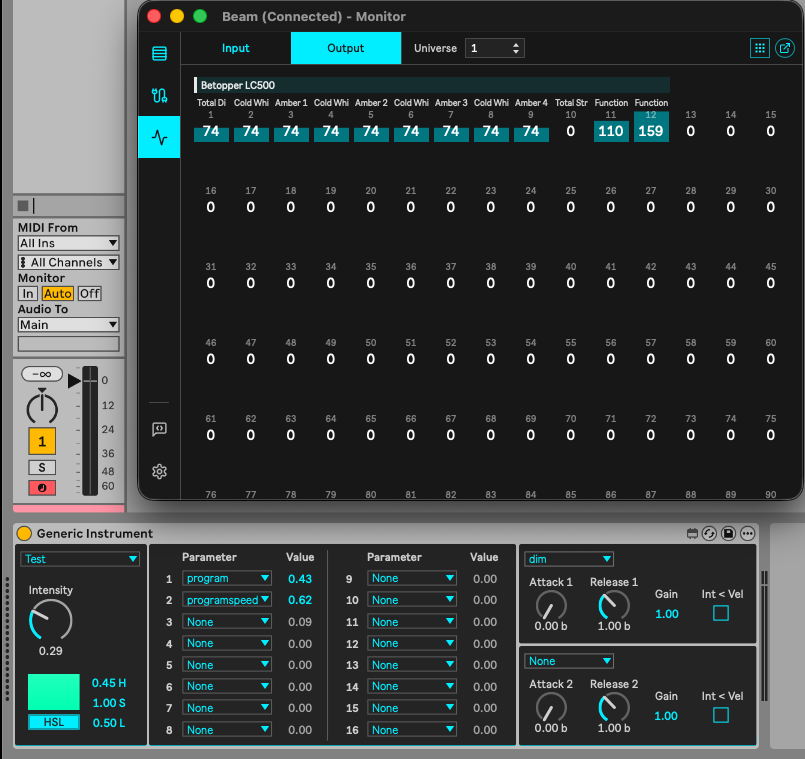

I just tested this again and I can see the correct channels respond in the Monitor when I adjust the program or programspeed values in the Generic Instrument. The same values also update correctly in Capture, but it doesn’t visualize whatever it’s supposed to do, simply because Capture often doesn’t know about the specific features such programs control.
